This guide was created by the staff of the GIS/Data Center at Rice University and is to be used for individual educational purposes only.

The steps outlined in this guide require access to ArcGIS Pro software and data that is available both online and at Fondren Library.

The following text styles are used throughout the guide:

Explanatory text appears in a regular font.

  1. Instruction text is numbered.
  2. Required actions are underlined.
  3. Objects of the actions are in bold.

Folder and file names are in italics.

Names of Programs, Windows, Panes, Views, or Buttons are Capitalized.

'Names of windows or entry fields are in single quotation marks.'

"Text to be typed appears in double quotation marks."

The following step-by-step instructions and screenshots are based on the Windows 10 operating system with the Windows Classic desktop theme and ArcGIS Pro 3.2.0 software. If your personal system configuration varies, you may experience minor differences from the instructions and screenshots.

In this lab, you will practice downloading, manipulating, mapping, and analyzing publicly available hydrology data from a variety of online websites to study the Buffalo-San Jacinto watershed subbasin, which encompasses the greater Houston region. Specifically, you will work with watershed and flowline data from the National Flood Interoperability Experiment (NFIE), stream gauge data from the National Water Information System (NWIS), and soils data from the Soil Survey Geographic Database (SSURGO).


Part 1: Creating a New GIS Project

  1. On the Desktop, click the Start menu and select ArcGIS > ArcGIS Pro.

  2. If the 'ArcGIS Sign In' window appears, sign in using your Rice organizational account. (Detailed Instructions)
  3. In the ‘ArcGIS Pro’ window, under the 'New' section, select the Map template.



  4. In the ‘Create a New Project’ window, for 'Name', type " HydrologyLab ".
  5. For 'Location', click the Browse button.
  6. Navigate to the location in which you would like to store your HydrologyLab project folder and click OK.

    A project folder is where you will store all of the files associated with this lab assignment. When working in a public computer lab environment, we recommend saving your work on an external USB drive. If you wish to nest your project folder inside other folders on your USB drive, or if you are using the hard drive on personal computer, ensure  that no spaces or special characters are used anywhere  along the entire file path of your project folder. The default project location on your personal computer is C:\Users\[ username ]\Documents\ArcGIS\Projects.

    In order to connect to a folder, you often have to be able to select the folder from the file browser on the right, rather than in the Navigation pane on the left. For example, if you wanted to store the project on an external USB F:\ drive, you would need to single-click Computer in the Navigation pane on the left and then single-click F:\ in the file browser on the right.

  7. Once the HydrologyLab folder is selected, click OK.
  8. Ensure Create a new folder for this project is checked.
  9. Click   OK.



Because you created a new project using the Map template, the project opens with a single map already created; however, it is generically named Map, so you will give it a more descriptive name to differentiate it from the maps created in future labs.

  1. In the Contents pane, click Map  once to select it. Then, click directly on the  Map  text a second time and rename it " Lab1Hydrology ".

Part 2: Mapping Watershed Data

Downloading NFIE data

Your project folder and geodatabase have been created, so you are ready to download your first set of online GIS data. You will start by downloading data from the National Flood Interoperability Experiment (NFIE), which is searchable on the ArcGIS Online platform.

  1. In a web browser, go to www.arcgis.com .
  2. In the search box in the top right of the website, type “NFIE-Geo Regions”.

If no items are returned, it is likely because you are signed in to your Rice account and the content is limited to Rice University content by default.

  1. If necessary, in the 'Filters' section on the left sidebar, toggle off Only search in Rice University, at which point the proper layer should appear.



  2. Click the NFIE-Geo Regions web map.



  3. On the right, click to Open in Map Viewer.
  4. On the map, click to select the Texas-Gulf region, which encompasses Houston.
  5. In the table in the pop-up, next to Hydroshare, click View.
  6. In the Content section, right-click the  NFIEGeo_12.gdb.zip  file and select  Download.



  7. Navigate to the location where the zipped file has been downloaded.
  8. Right-click the downloaded  NFIEGeo_12.gdb zip file and select Extract All….
  9. In the ‘Extract Compressed (Zipped) Folders' window, click Extract.
  10. In the new extracted folder window that opens, right-click the extracted  NFIEGeo_12.gdb  folder and select and Copy.
  11. Navigate back to your  HydrologyLab  folder.
  12. Paste the  NFIEGeo_12.gdb  folder directly inside your HydrologyLab folder. Do NOT paste them inside the HydrologyLab.gdb geodatabase.
  13. Ensure that your HydrologyLab folder appears as shown below.


  14. Return to ArcGIS Pro.

Adding feature data in ArcGIS Pro

Unfortunately, any changes you make to files outside of ArcGIS Pro are not automatically reflected inside ArcGIS Pro. Since you just added new files to your HydrologyLab folder, you may need to refresh your HydrologyLab folder in order for them to appear.

  1. In the Catalog pane on the right of the map view, expand Foldersright-click your HydrologyLab  folder, and select Refresh.
  2. Expand the HydrologyLab  folder > NFIEGeo_12.gdb  geodatabase > Geographic  feature dataset to preview what feature classes, or layers, it contains.
  3. Drag the Geographic feature dataset from the Catalog pane into the Lab1Hydrology map view.

If you ever close the Catalog pane, you can reopen it by clicking the View tab on the ribbon and then clicking the Catalog Pane button.

The polygons in the Subwatershed layer represent all of the subwatersheds within the Texas-Gulf Coast Region 12, which you selected when initially downloading the data from the ArcGIS Online website. Now you will examine the attributes of this subwatershed data.

  1. In the Contents pane, right-click the Subwatershed  layer and select Attribute Table. Expand the size of the table, if desired.

You will notice three of the columns are labeled HUC_8HUC_10, and HUC_12, which correspond to the subbasin, watershed, and subwatershed codes respectively. HUC stands for hydrologic unit code, which is a unique identification number assigned to each hydrologic unit in the United States. Further to the right, you will see additional columns containing the actual names of the HUC-10 watersheds and HUC-12 subwatersheds.

  1. Close the Subwatershed attribute table.

Adding an online basemap

First, you would like to identify the subwatersheds within the greater Houston region, but, without any additional reference layers regarding streets or administrative boundaries, this would be very difficult to do. Fortunately, you can utilize various basemaps of the world hosted online by Esri, rather than having to obtain all of the GIS reference layers yourself. Because these basemaps are being hosted online, they cannot be edited and can sometimes be slow to load.

Though the Topographic basemap has already been added to your map by default, it appears in the background and is visually obscured by the other data layers.

  1. In the Contents pane, uncheck the StreamGage, Flowline, Catchment and Waterbody layers, leaving only the Subwatershed layer visible.

The basemap is still not visible beneath the Subwatersheds layer, so you will need to make that layer transparent.

  1. In the Contents pane, click the Subwatershed layer to select it.
  2. On the ribbon, click the Feature Layer tab.
  3. In the Effects group, type “60” to change the transparency of the layer.



Now the basemap should be visible beneath the subwatersheds.

Identifying features

Ultimately, you want to select all of the subwatersheds that lie within the Buffalo-San Jacinto subbasin in which Houston is located, but first you will need to look up the HUC-8 code corresponding to this subbasin.

  1. On the ribbon, click the Map tab and ensure that the Explore tool is selected.
  2. Use the navigation tools to zoom in to the Houston region.
  3. In the map view, click near the center of Houston.

In the ‘Pop-up’ window, notice that the HUC_8 field contains the code 12040104, which corresponds to the Buffalo Bayou-San Jacinto subbasin. The first two digits (12) stand for the region (Texas-Gulf Region). The next two digits (1204) stand for the subregion (Galveston Bay-San Jacinto). The next two digits (120401) stand for the basin (San Jacinto). The last two digits (12040104) stand for the subbasin (Buffalo-San Jacinto). The additional two digits added to create the HUC-10 and HUC-12 codes stand for the watershed and subwatershed, respectively.

  1. Close the 'Pop-up' window.

Performing an attribute query

Now you are ready to perform an attribute query to select all of the subwatersheds within the Buffalo-San Jacinto subbasin (HUC-8 = 12040104).

  1. On the Map tab, click the Select by Attributes button.

  2. In the 'Select By Attributes' window, use the ‘Input Rows’ drop-down menu to select the  Subwatershed  layer, if necessary.
  3. Use the ‘Selection Type’ drop-down menu to select New selection.
  4. Click New expression.
  5. For the first two fields, select  HUC-8 , and  is equal to .
  6. Type "12040104" in the last field.

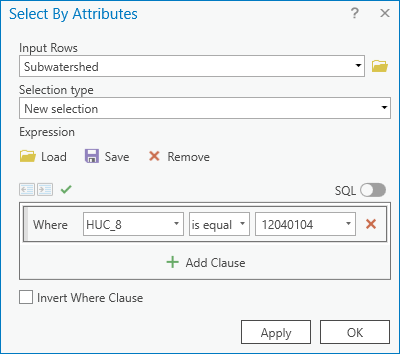

  7. Verify that your ‘Select By Attributes’ window appears as shown below and click OK.
  8. In the Contents pane, right-click the  Subwatershed  layer and select Selection > Zoom To Selection.

Exporting selected features

Now that the Buffalo-San Jacinto subwatersheds have been selected, they can be exported into a separate layer stored in your HydrologyLab geodatabase.

  1. In the Contents pane, right-click the  Subwatershed  layer and select Data > Export Features.

By default, the ‘Export Features’ window will only export the selected features using the coordinate system of the data source. Also notice that the output location defaults to the HydrologyLab geodatabase, because that is your default geodatabase for this project.

  1. For ‘Output Name’, type “ SubwatershedsNew ”.

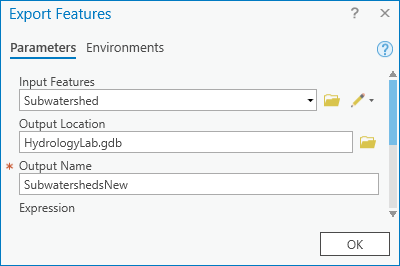

  2. Ensure your ‘Export Features’ window appears as shown below and click OK.

Since you’ve exported the particular subwatersheds of interest, you may now remove the master Subwatersheds layer from your map.

  1. In the Contents pane, right-click the  Subwatershed  layer and select Remove.

Saving ArcGIS projects

At this point, it is a good idea to save your map document and to continue saving regularly.

  1. On the Quick Access toolbar, click the Save button.

At the top of the Contents pane window, notice that the leftmost List By Drawing Order button is currently selected.

  1. At the top of the Contents pane, click the List By Source button.

The Data Source tab displays the full file path locations of all the data layers referenced in your map. Notice that the majority of layers are still stored in the originally downloaded NFIEGeo_12 geodatabase, but the SubwatershedsNew layer you just exported is now stored in your HydrologyLab project geodatabase.

  1. At the top of the Contents pane, click the List By Drawing Order button to return to the list of data layers.

Geoprocessing: Dissolving features

Now you would like to highlight the boundary of the entire Buffalo-San Jacinto subbasin, but, if you tried to change the outline of the current Subwatersheds layer, it would change the outline around all subwatersheds. Instead, you will dissolve all the subwatersheds into a single subbasin feature stored in a new feature class inside your HydrologyLab geodatabase.

  1. On the ribbon, click the Analysis tab and click the Tools button, which will open the Geoprocessing pane on the right.

Notice that at the bottom of the Geoprocessing pane, you now see the Catalog and Geoprocessing tabs. Any future panes that are opened will create additional tabs at the bottom.

  1. At the top of the Geoprocessing pane, in the 'Find Tools' box, type "dissolve" and press Enter.



  2. Click Dissolve (Data Management Tools).
  3. In the top right corner of the ‘Dissolve’ tool pane, hover over the question mark icon.

Read the ‘Dissolve’ window help and review the sample illustration. Notice that this tool dissolves boundaries based on common values in a particular field. In this case, you will dissolve the subwatersheds based on their common subbasin value, resulting in a file showing only the larger subbasin boundary. If you were to click on the question mark icon, it would open up the full Dissolve tool documentation on the ArcGIS Pro help website.

  1. For ‘Input Features’, drag in the  SubwatershedsNew  layer from the Contents pane or select the  SubwatershedsNew  option from the drop down box.
  2. For ‘Output Feature Class’, rename the feature class from “SubwatershedsNew_Dissolve” to “ Subbasin ”.
  3. For ‘Dissolve_Field(s)’, select the  HUC_8  field, since this is the field containing the common subbasin value you wish to dissolve on.
  4. Ensure your ‘Dissolve’ tool appears as shown below, and click Run.

  5. In the Contents pane, toggle the new  Subbasin  layer off and on to get a better idea of the result of the Dissolve tool.
  6. In the Contents pane, right-click the  Subbasin  layer and select Attribute Table.

Notice that only the dissolve field, in this case the HUC_8 field, was preserved. Because multiple subwatersheds were dissolved into a single subbasin, it is not possible to retain all of the attributes of each separate subwatershed.

  1. Close the Subbasin attribute table.

In order to see all the layers simultaneously, you will give the subbasin boundary a hollow outline.

  1. In the Contents pane, click the rectangle symbol beneath the Subbasin layer name to open the Symbology pane on the right.
  2. Near the top of the Symbology pane, click the Properties tab.

  1. For ‘Color:’, use the drop-down menu to select No Color.
  2. For ‘Outline Color:’, used the drop-down menu to select Black.
  3. For ‘Outline Width:’, type “2”.
  4. Click Apply.

Now you would like to create a new layer based on the watersheds in the Buffalo-San Jacinto subbasin. In order to facilitate symbolization and labeling of the watershed names, you will now dissolve the subwatersheds into their respective watershed boundaries using the HUC-10 code.

  1. At the bottom of the Symbology pane, click the Geoprocessing tab.
  2. For ‘Input Features’, leave the  SubwatershedsNew  layer previously entered.
  3. For ‘Output Feature Class’, rename the feature class from Subbasin to “ Watersheds ”.
  4. For ‘Dissolve_Field(s)’, select the  HUC_10_NAME  field.
  5. Click Run.

While you could have also dissolved using the HU_10 field, the watershed name is probably more meaningful to you than the HU_10 code. You no longer need the SubwatershedsNew layer for this section. The rest of the analysis will be done with the new Watersheds layer.

  1. In the Contents pane, uncheck the original  SubwatershedsNew  layer.
  2. In the Contents pane, drag the  Subbasin  layer above the Watersheds layer, so it is fully visible again.

Symbolizing features by categories using unique values

Now that you have generated the watershed features within the Buffalo-San Jacinto subbasin, you will symbolize them based on their HUC-10 watershed name.

  1. In the Contents pane, right-click the  Watersheds  layer and select Symbology.
  2. In the Symbology pane, use the 'Primary symbology' drop-down menu to select Unique Values.
  3. Use the ‘Field 1’ drop-down menu to select the  HU_10_NAME  field.
  4. Use the ‘Color Scheme’ drop-down menu to select the color ramp of your choice.

  5. On the bottom half of the Symbology pane, if only one category called <all other values> is listed, as shown below, click the Add all values button.

Notice that the subwatersheds from the previous layer have now been grouped into 8 watersheds within the Buffalo-San Jacinto subbasin. Notice also that the transparency originally applied to the Subwatershed layer, was maintained as the layer was re-exported and then merged, such that the Topographic basemap still appears through it.

  1. Ensure that the  Watersheds  layer is selected in Contents pane.
  2. On the ribbon, click the Feature Layer contextual Labeling tab.
  3. In the Label Class group, for 'Field', ensure the HU_10_NAME field is selected.
  4. In the Layer group, click the Enable Labeling button to turn on the labels.

Creating a layout

  1. On the ribbon, click the Insert tab.
  2. In the Project group, click the New Layout button and, under the 'ANSI - Landscape' section, click Letter 8.5" x 11".
  3. On the ribbon, click the Map Frame group and, under the 'Lab1Hydrology' map section, select the second frame that is labeled with the scale, such as 1:600,000.

  4. Under the 'Rice Bus Routes' map section, select the second frame that is labeled with a scale, such as 1:600:000.
  5. Click and hold near the top left corner of the layout page and drag the rectangle near the bottom right corner or the layout page.
  6. In the Contents pane, right-click the Watersheds layer and select Zoom to Layer.

Using techniques you learned last week, create a suitable map, as described for the map layout to be turned in below. All map elements, such as text, legends, north arrows, and scale bars can be added to the layout from the Insert tab on the ribbon.

  1. Save your project

FOR MAP LAYOUT TO BE TURNED IN

Create an 8.5" x 11" layout clearly delineating the subbasin and watersheds on top of a basemap, with the symbology and labels corresponding to the watersheds. You may need to further adjust the order of your layers in the Contents pane and their symbology.


Part 3: Mapping Flowline Data

Next, you will add flowlines to your map, which were previously downloaded from NFIE.

  1. At the top left of your Layout view, click the Lab1Hydrology map tab to return to your map view.

  2. In the Contents pane, check the  Flowline  and  Catchment  layers to make them visible.

Performing a spatial query

Now you would like to select only the flowlines and catchments within the Buffalo-San Jacinto subbasin, but this is not possible with an attribute query, so you will instead use a spatial query.

  1. On the ribbon, click the Map tab.
  2. In the Selection group, click the Select By Location button.
  3. For ‘Input Features’, use the drop-down menu to select the  Flowline  layer.
  4. Use the second 'Input Features' drop-down menu to select the  Catchment  layer.
  5. For ‘Relationship’, use the drop-down menu to select Have their center in. (This setting ensures that catchments and flowlines which share the outside border with the subbasin will not also get selected.)
  6. For ‘Selecting Features’, use the drop-down menu to select the  Subbasin  layer.
  7. Ensure your ‘Select by Location’ window appears as shown below and click OK.

All of the flowlines and catchment areas that are within the subbasin are now selected.

  1. Export the selected  Flowline  features into your HydrologyLab geodatabase and name the new feature class “ Flowlines ”.
  2. Remove the original  Flowline  layer from the Contents pane.
  3. Export the selected  Catchment  features into your HydrologyLab geodatabase and name the new feature class “ Catchments ”.
  4. Remove the original  Catchment  layer from the Contents pane.
  5. Uncheck the new  Catchments  layer, so it is no longer visible.

Symbolizing features using a single symbol

  1. In the Contents pane, click the line symbol beneath the Flowlines layer name.
  2. At the top of the Symbology pane, click the Gallery tab and select the Water (line) symbol.

Calculating summary statistics for an attribute table field

  1. Open the  Flowline s attribute table.
  2. Scroll right to the 8th field and right-click the  LENGTHKM  field name and select Statistics.

From the Chart Properties pane on the right, you can see there are 543 flowlines in the Buffalo-San Jacinto basin whose average length is 1.94 km and total length is 1052 km.

  1. View the statistics for the  AreaSqKM  field in the  Catchments  attribute table.

Based on the statistics you have just seen, calculate the answers to the questions listed for the map layout to be turned in below. In order to add the statistics to your map layout, you will insert a rectangle text element.

  1. At the top left of your map view, click the Layout tab to return to your layout view.
  2. On the ribbon, click the Insert tab.
  3. In the Graphics and Text group, click the Rectangle text button.

  4. Drag a rectangle on your map layout to insert a rectangle text element.

You can edit the text and customize the rectangle appearance by double-clicking on the rectangle text element and using the 'Format Text' Element pane on the right.

  1. Save your project.

FOR MAP LAYOUT TO BE TURNED IN

Add a text box to the layout containing the answers to the following questions:

  1. How many catchments are there in the Buffalo-San Jacinto subbasin?
  2. What is their average area in acres and in km2? (Look up conversion factor.)
  3. What is the total area of catchments in km2?
  4. What is the ratio of the total length of the streamlines to the total area of the Buffalo-San Jacinto catchments (called the drainage density) in km-1?

Symbolizing features by quantities using graduated symbols

  1. Return to the Lab1Hydrology map view.
  2. Open the Flowlines Symbology tab.
  3. Use 'Primary Symbol' drop down menu to select  Graduated symbols.
  4. Use the ‘Field’ drop-down menu to select the Q0001C field, which contains the mean annual flow.
  5. Click the line next to Template to change the symbology of your flowlines.

  6. Save your project.

FOR MAP LAYOUT TO BE TURNED IN

The flowlines should have graduated symbology based on their mean annual flow.


Part 4: Mapping Stream Gauge Data

Selecting data within subbasin

  1. In the Contents pane, check the  StreamGage  layer which you brought in at the beginning with the Geographic feature dataset from the NFIEGeo_12 Geodatabase.
  2. On the ribbon, click the Map tab.
  3. Click the Select By Location button.
  4. For ‘Input Features’, use the drop-down menu to select the  StreamGage  layer.
  5. For ‘Relationship’, use the drop-down menu to select Within.
  6. For ‘Selecting Features’, use the drop-down menu to select the  Subbasin  layer.
  7. Click OK.

All of the stream gages that are within the subbasin are now selected.

  1. Export the selected  StreamGage  features into your HydrologyLab geodatabase and name the new feature class “ SubbasinStreamGages ”.
  2. Remove the original  StreamGage  layer from the Contents pane.

Export a layout

  1. Return to the Layout view.
  2. On the ribbon, click the Share tab and click the Layout button in the Export group to open the Export Layout pane on the right.

  3. In the Export Layout pane, use the 'File Type' drop-down menu to select PDF.
  4. For 'Name', type "Lab 1 Hydrology" and click Export.
  5. Save your project.

FOR MAP LAYOUT TO BE TURNED IN

The stream gage site locations should be added to the map layout.


Part 5: Mapping Soils Data

Downloading SSURGO data

  1. In a web browser, go to http://arcgis.com.
  2. On the top right search bar, search for "SSURGO Downloader".
  3. Again, if necessary, in the 'Filters' section on the left sidebar, toggle off Only search in Rice University, at which point the proper layer should appear.

  1. Click the SSURGO Downloader web mapping application.
  2. On the right side of the webpage click the View Application button.

  3. In the search bar in the top corner, type "Houston, TX".

  4. Click in the Buffalo-San Jacinto subbasin to select it and click the Download link.

  5. Right-click on your downloaded  BuffaloSanJacinto_12040104.ppkx file and select Show in folderCopy the file.
  6. Navigate back to your  HydrologyLab  folder.
  7. Paste the  BuffaloSanJacinto_12040104.ppkx file directly inside your HydrologyLab folder. Do NOT paste it inside the Hydrologylab.gdb geodatabase.
  8. Single-click the .ppkx file to select it and press Enter.

A new ArcGIS Pro application window will open. You will complete Part 5 using this window, but do not close your previous ArcGIS Pro window.

A packaged project file (.ppkx), contains both a project (.aprx) and all data layers referenced in the project in a project geodatabase (.gdb). The new instance of ArcGIS Pro will open showing the different soil classes within the subbasin.

  1. In the Contents pane, right-click the  Subbasin  layer and select Zoom To Layer.
  2. On the Map tab, click the Explore button.
  3. In the Contents pane, uncheck the Subbasin layer, so that it will not be queried in the next step.
  4. In the Map view, click on any of the soil classes.

Scroll down through the list of fields to see the wide variety of data available for each soil class. You may need to scroll to the right to see the actual values stored in these fields. In particular, you will be utilizing the data stored in the Available Water Storage 0-100 cm – Weighted Average field.

Geoprocessing: Clipping features

You will now clip the soil polygons to the extent of the Buffalo-San Jacinto subbasin.

  1. On the ribbon, click the Analysis tab and click the Tools button.
  2. At the top of the Geoprocessing pane, in the 'Find Tools' search bar, type "clip" and press Enter.
  3. Click Clip (Analysis Tools).

Read the ‘Clip’ window help and review the sample illustration. Notice that this tool clips one dataset to the extent, or shape, of another dataset.

  1. For ‘Input Features’, use the drop-down menu to select the  Mapunits  layer.
  2. For ‘Clip Features’, use the drop-down menu to select the  Subbasin  layer.

Hover over the ‘Output Feature Class’ field and note that the file path did not default to your HydrologyLab geodatabase, but instead to the default geodatabase that was referenced in the map package you downloaded. You will change this to your default project geodatabase.

  1. For 'Output Feature Class', click the Browse button.
  2. Navigate to your HydrologyLab folder and double-click the HydrologyLab geodatabase.
  3. For 'Name', type “ Soils ” and click Save.
  4. In the Geoprocessing pane, again hover over the ‘Output Feature Class’ field to ensure the output Soils feature class will be stored in your HydrologyLab geodatabase and click Run.

Notice that the resulting Soils layer maintains the soil class boundaries, but limits the extent of the soils layer to the extent of the subbasin boundary.

You will now return to your main HydrologyLab project application window.

  1. Close the BuffaloSanJacinto_12040104 project in ArcGIS Pro without saving.
  2. Return to your HydrologyLab project.
  3. On the ribbon, click the Insert tab.
  4. On the far left, click the New Map button.
  5. In the Contents pane, click  Map  once to select it. Then, click directly on the  Map  text a second time and rename it " Lab1Soils ".
  6. At the bottom of the far right pane, click the Catalog tab.
  7. Right-click the HydrologyLab.gdb geodatabase and select Refresh.
  8. Drag the newly clipped  Soils feature class from the Catalog pane to the Lab1Soils map view.
  9. Also, drag the Subbasin  feature class from the Catalog pane to the  Lab1Soils  map view.
  10. Symbolize the  Subbasin  layer using the same symbology as you used in the Lab1Hydrology map, with no color and a black outline.

Symbolizing features by quantities using graduated colors

  1. In the Contents pane, click the Soils layer to select it.
  2. If necessary, open the Symbology pane.
  3. For 'Primary symbology', select Graduated Colors.
  4. For ‘Field’, select the  Available Water Storage 0-100 cm – Weighted Average  field.
  5. Experiment with the 'Method', 'Classes', and 'Color scheme' fields.

Notice that the density of the polygon outlines obscures the colors of the polygons themselves.

  1. On the bottom half of the symbology pane, click the More drop-down button and select Formal all symbols.

  2. Use the ‘Outline Color’ drop-down menu to select No Color.
  3. Click Apply.

Now you will calculate the water storage capacity of the top 1 m of soil within the Buffalo-San Jacinto subbasin.

  1. Open the  Soils  layer attribute table.
  2. Calculate statistics for the Available Water Storage 0-100 cm – Weighted Average field.

Based on the statistics you have just seen, calculate the answers to the questions listed for the map layout to be turned in below. Note that, technically, a true calculation of the average available water storage for the subbasin would require factoring in the area of each soil polygon to calculate a weighted average. In this case, just use the statistical mean as it is listed in the ‘Statistics’ window. Similarly, the total water storage for the subbasin would require multiplying the available water storage by the area of each soil polygon and then summing the results. In this case, you may simply multiply the area of the entire subbasin by the statistical mean as it is listed in the ‘Statistics’ window.

As before, create a new map layout and add the statistics using a rectangle text element. When your layout is complete, export it as a PDF.

TO BE TURNED IN: An 8.5 x 11 map document showing the soils clipped to the Buffalo-San Jacinto subbasin and a text box containing the answers to the following questions:

  1. What is the average available water storage (cm) in the Buffalo-San Jacinto subbasin?
  2. Based on your previous calculation of the area of the subbasin in km2, what volume of water (km3) could potentially be stored in the top 1 m of soil in the Buffalo-San Jacinto subbasin if the soil were fully saturated with water?

Deliverables

  1. Create an 8.5 x 11 layout with the following layers limited to the subbasin:
    • Subbasin – hollow outline
    • Watersheds – categorical symbology and labeled
    • Flowlines – graduated symbology
    • Stream gages – point symbol
    • Basemap

Include a text box in the layout containing the answers to the following questions:

  1. How many HUC-12 catchments are there in the Buffalo-San Jacinto Basin?
  2. What is their average area in km2?
  3. What is the total area of this subbasin in km2?
  4. What is the ratio of the length of the streamlines to the area of the Buffalo-San Jacinto subbasin (called the drainage density) in km-1?

2. Create an 8.5 x 11 layout with the following layers limited to the subbasin:

    • Subbasin – hollow outline
    • Soils – graduated colors

Include a text box in the layout containing the answers to the following questions:

  1. What is the average available water storage (cm) in the Buffalo-San Jacinto subbasin?
  2. Based on your previous calculation of the area of the subbasin in km2, what volume of water (km3) could potentially be stored in the top 1 m of soil in the Buffalo-San Jacinto subbasin if the soil were fully saturated with water?


  • No labels
